Overview

This project consists of an object-oriented PHP system designed to manage and render data for Magic: The Gathering cards. The system employs a layered architecture, separating all data handling (queries, retrieval) from the presentation layer (HTML rendering, filtering).



The core functions are managed by two classes:

1. MtgRepository: Handles all database operations, querying the mtg_cards table and returning structured results.
2. MtgRenderer: Responsible for rendering HTML for filters, card lists, and card details, combining PHP output buffering with HTML templates for flexibility.

⚙️ Technical Stack

Architecture & Design

The architecture is built around clear separation of concerns using two primary classes:

• Database Access: The MtgRepository class requires and utilizes a Database.php file to establish a connection via PDO (Database::getConnection()). This repository handles complex data retrieval, such as fetching cards with filters, limits, and offsets, or retrieving print variants using the oracle_id.
• Presentation Logic: The MtgRenderer manages the display. It requires an instance of MtgRepository during its construction. It uses PHP output buffering (ob_start() and ob_get_clean()) to build complex HTML structures, such as filter forms and card grids.
• Input Sanitization: A private sanitize() method is implemented within the MtgRenderer to protect against Cross-Site Scripting (XSS).

Features

The system provides robust features for filtering and displaying card data:

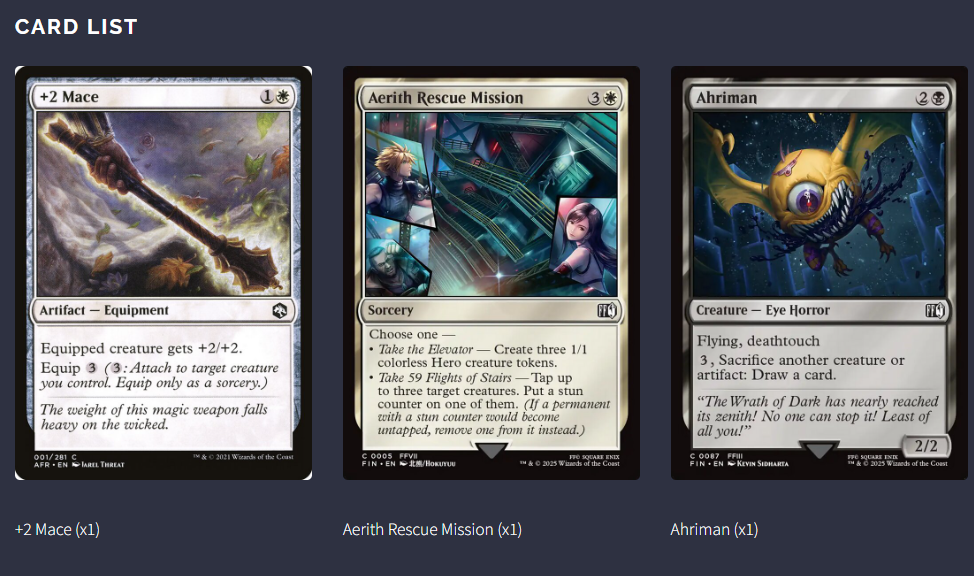

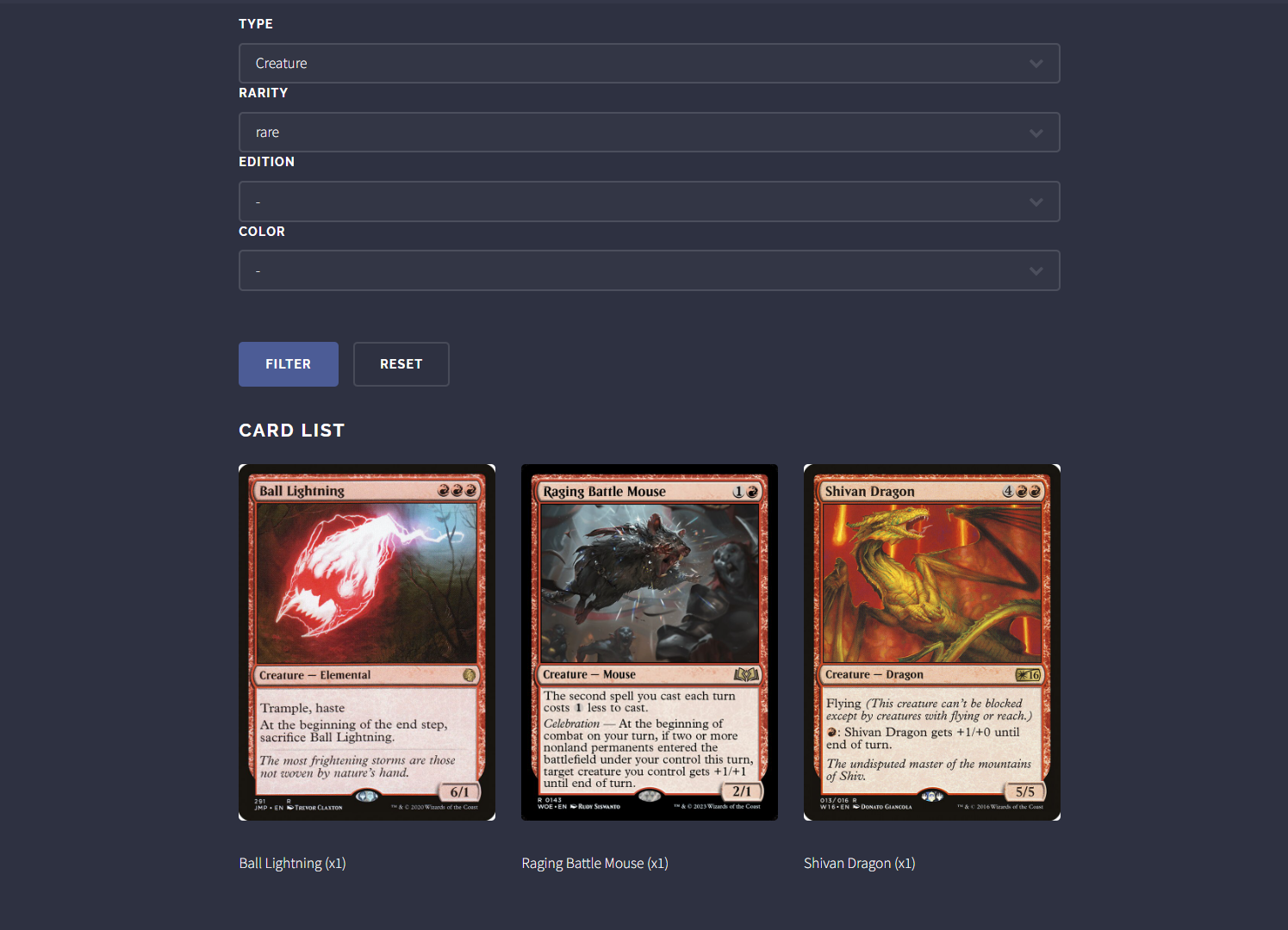

1. Filter Generation: The system dynamically fetches distinct card properties from the database to build HTML filter forms, including types, rarities, and editions (sets).
2. SQL Filtering: It can construct SQL-safe WHERE conditions by processing user input from POST/GET parameters for type, edition, rarity, and color identity. For colors, it uses a defined mapping of single-letter keys (U, B, R, W, G) to their full names (Blue, Black, Red, White, Green).

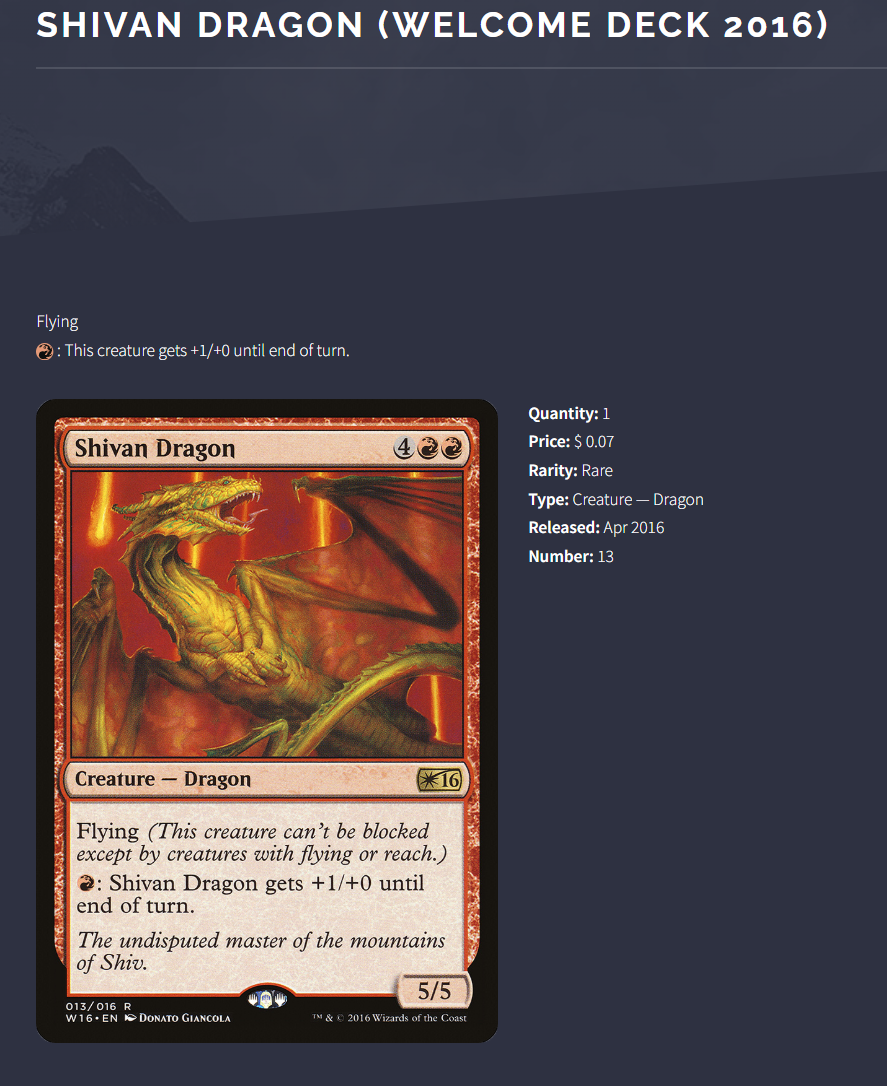

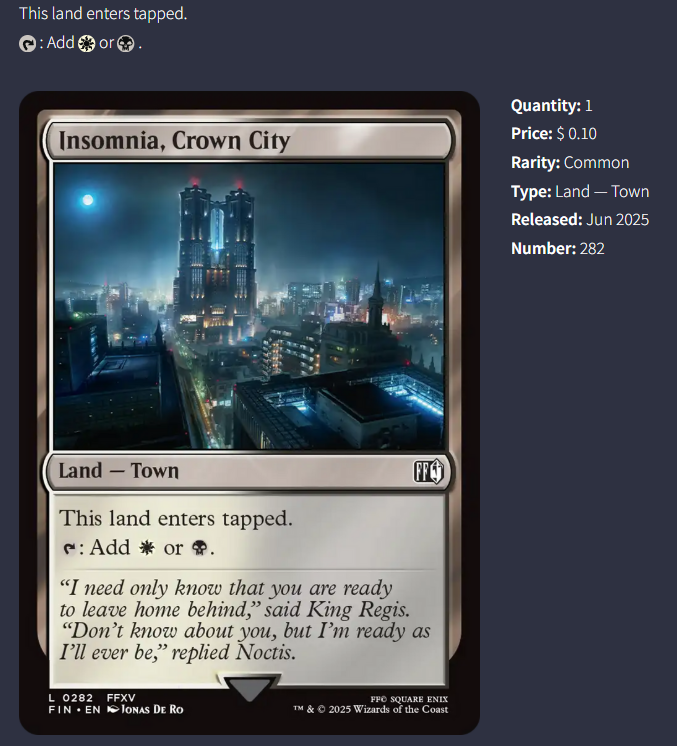

3. Detailed Card View: The getCard() method retrieves detailed card information, including prices, oracle_text, released_at, and rarity.
4. Symbol Rendering: When displaying the card's oracle_text, the renderer processes placeholders (e.g., {W}, {T}) and replaces them with the contents of the corresponding SVG files stored in a designated folder. It sanitizes the SVG content and adds inline styling to scale it to text height.
5. Variant Display: It supports listing other printings of the same card by querying all cards sharing the same oracle_id.
6. Set Collection Display: It can retrieve a random sample of 12 cards from the same collection/set using ORDER BY RAND().

Challenges & Solutions

• Challenge: Accurately fetching general card types (e.g., "Creature") when the database field (type_line) might contain subtypes (e.g., "Creature — Goblin").
  • Solution: The getTypes() method uses a CASE WHEN statement and string manipulation functions (LOCATE and SUBSTRING) in SQL to strip the subtype if an '—' is found, returning only the primary type.
• Challenge: Securely passing dynamic variables (like pagination controls) into SQL queries.
  • Solution: The getCards() method utilizes prepared statements ($this->pdo->prepare($sql)) and explicitly binds variables using PDO::PARAM_INT for the $limit and $offset parameters.
• Challenge: Rendering complex text containing custom card symbols.
  • Solution: The displayCard() method uses preg_replace_callback to find symbols enclosed in braces ({...}) and replaces them with sanitized, injected SVG code fetched from local files, ensuring the symbols scale appropriately within the text.

Code Snippets

The core responsibility of the repository is defined in its initialization:

require_once __DIR__ . '/Database.php';

/**
* Class MtgRepository
*
* Handles all database operations for Magic: The Gathering card data.
* Responsible for querying the mtg_cards table and returning structured results.
*/
class MtgRepository {

private PDO $pdo;

public function __construct() {
$this->pdo = Database::getConnection();
}
// ... methods for fetching data ...

The method for fetching distinct card types demonstrates how complex SQL logic is used to clean data:

SELECT DISTINCT
  CASE WHEN LOCATE('—', type_line) > 0 THEN SUBSTRING(type_line, 1, LOCATE('—', type_line) - 1)
       ELSE type_line
  END AS value
FROM mtg_cards
ORDER BY type_line;

Results & Learnings

This project demonstrates proficiency in building a robust, data-driven application using Object-Oriented PHP. Key learning outcomes include managing complex data transformation within SQL, implementing secure and parameterized queries, and employing advanced text processing with preg_replace_callback to integrate visual assets (SVGs) into dynamic text content. It provides a scalable structure for handling large, complex datasets like those found in Magic: The Gathering.

Future roadmap

• ✅ Pagination for card list
• ✅ Monthly card price update
• Add the remaining cards (may take a while, they are not physically with me)
